Camera Link Optical Extender

FCL-200T/FCL-200R

Syscom Korea’s Optical Camera Link Cable can send
signals up to 20km without electrical or magnetic
noises that plague performance of high speed
Camera Link. Syscom Korea’s Optical Camera Link
solution consists of plug and play modules with
FCL-200LT connecting to camera and FCL-200LR
connecting to the frame grabber( or PC) side. The FCL-200LT receives, converts and sends out video data to fiber from the camera while FCL-200LR receives the optical signals, converts  hem back into video data and sends to the frame grabber.

Data Sheet

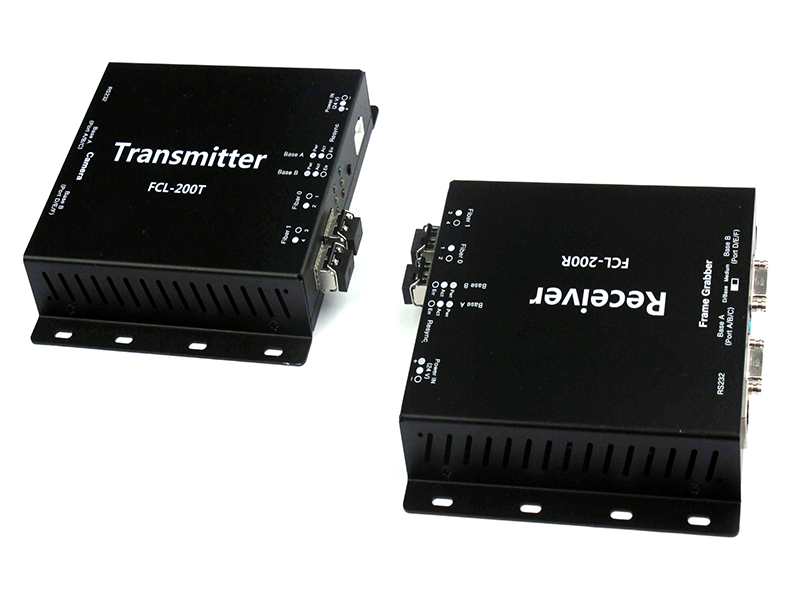

fcl-200tr_set_800

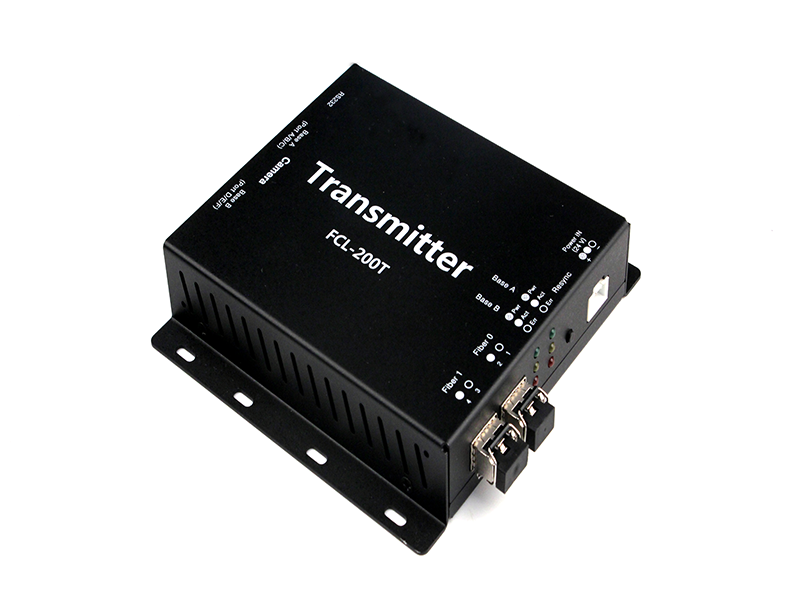

fcl-200t_800

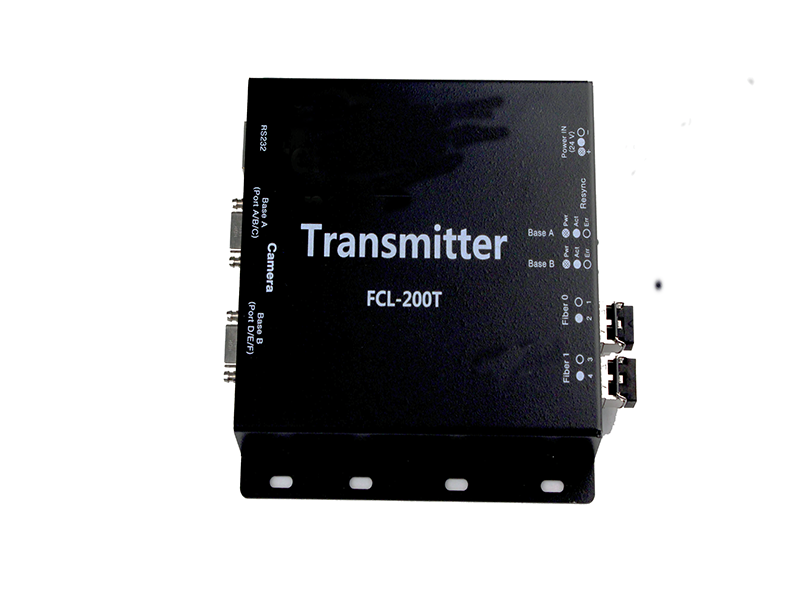

fcl-200t-2_800

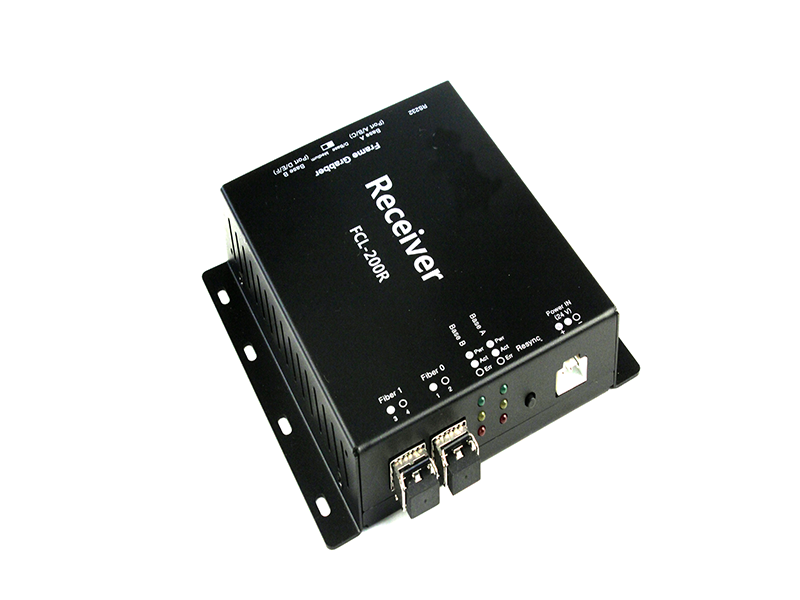

fcl-200r_800

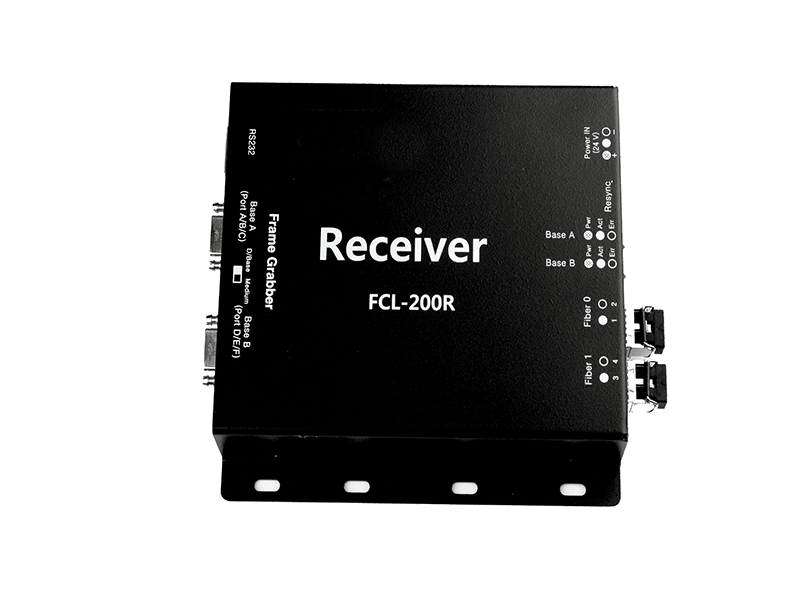

fcl-200r-2_800

Typical Set Up Diagram

Technical  Specification

  • All of Camera-Link Interface Compliance ( Area and Line Scan)

  • Support Dual-Base / Medium Configuration

  • (CC1 ~ 4, RS232, 6 Ports, LVAL, DVAL, FVAL)

  • Support Pixel clock from 20 – 85MHz

  • Auto detect and Generate Pixel clock

  • Zero loss and transparent transport

  • Locking DC power connector

  • Attaches to the compact SDR26 connectors

  • Status Monitoring LEDs ( PWR, ACT, Error )

  • Intelligent cable disconnect detecting ( Camera cable, Fiber cable )

  • Re-synchronization buttons

  • LC duplex fiber link (2-core fiber)

  • Allows remote operation up to 20km

  • Machine Vision Applications

  • Product inspection – PCB, LCD, Wafer

  • Bar code reading and sorting

  • Medical Imaging

  • High precision security surveillance

  • Vehicle license plate reading/recording

  • Port/Harbor cargo container management

  • Railroad measurement/inspection

  • Intelligent Traffic Systems (ITS)

  • Border Control

  • Cameras placed in harsh environment – Nuclear plant, Chemical plant, Factory

  •  Long haul image transmissions

  • Bridge inspection

  • Military & Defense Applications

  • Astronomy

  • Computer microscopy

Product FCL-200L T/R
Pixel Clock Range 20 ~ 85 [MHz]
Supported Camera Configration Base / Medium
Sync. Signals LVAL, FVAL, DVAL
Camera Control CC1 ~ CC4
Serial Communication SerTFG, SerTC
Connector Type Mini Camera Link ( SDR )

Operating Temperature 0 ~ 50[℃]
Input Voltage DC 12 ~ 24 [V]
Typical Supply Current @ 12V DC CM-base 250 [mA]
Connector Type Molex 53259-0329 Male
Weight (Approximate) 300 Gram each module

Operating Wavelength 1310 [nm]
Min Optical TX Output Power -2.5 [dBm]
Transmission Distance Max 2000 [m]
Connector Type LC Duplex
Fiber Type 9/125 [um] SMF
