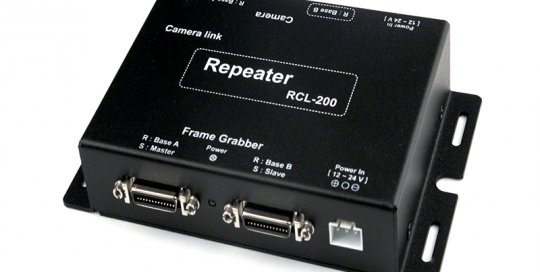

Camera link Repeater RCL-200 Camera Link is a high-speed camera/frame grabber interface designed for high performance vision  applications. Standard Camera Links delivers signals for 10 meters or less, creating inflexible situations for many applications where longer distance image transmission is required between the camera and the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance (Area and Line Scan) Support Base, Medium and Full Configuration Support Pixel clock from 20 ~ 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container Management Railroad Measurement / inspection Cameras placed in harsh environment - Nuclear plant, Chemical plant, Factory Bridge inspection Military & Defencse [...]

Camera link Repeater RCL-300 Camera Link is a high-speed camera/frame grabber interface designed for high performance vision  applications. Standard Camera Links delivers signals to 3 meters or less, occurring inflexible situations in many applications which requires longer distance image transmission between the camera and the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance (Area and Line Scan) Support Base, Medium and Full Configuration Support Pixel clock from 20 ~ 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container Management Railroad Measurement / inspection Cameras placed in harsh environment - Nuclear plant, Chemical plant, Factory Bridge inspection Military & Defencse Applications [...]

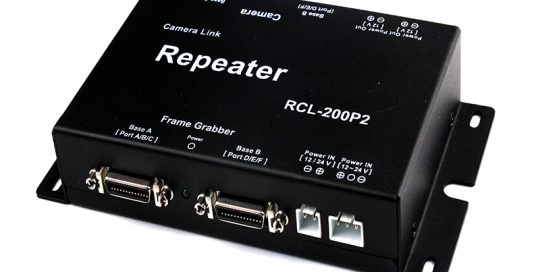

Camera link Repeater RCL-200P2 Camera Link is a high-speed camera/frame grabber interface designed for high performance vision  applications. Standard Camera Links delivers signals for 10 meters or less, creating inflexible situations for many applications where longer distance image transmission is required between the camera and the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance ( Area and Line Scan) Support Dual Base / Medium Configuration  Support Pixel clock from 20 - 85MHz  Zero loss and transparent transport Locking DC power connector  Attaches to the compact MDR26 connect 2 Power out 12V support Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container management Realroad measurement/inspection - Nuclear plant, Chemical plant, Factory  Bridge inspection  Military & Defense Applications [...]

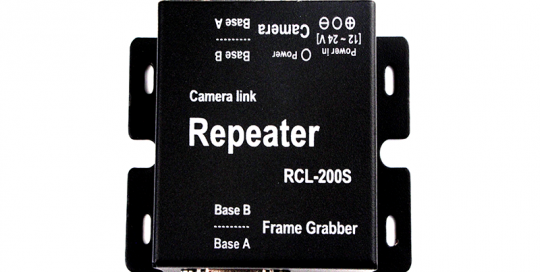

Camera link Repeater RCL-200s Camera Link is a high-speed camera/frame grabber interface designed for high performance vision applications. Standard Camera Links delivers signals for 10 meters or less, creating inflexible situations for many applications where longer distance image transmission is required between the camera and the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance ( Area and Line Scan) Support Dual Base / Medium Configuration Support Pixel clock from 20 - 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect PoCL Bypass Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container management Railroad measurement/inspection Cameras placed in harsh environment - Nuclear plant, Chemical plant, Factory Bridge inspection Military & [...]
