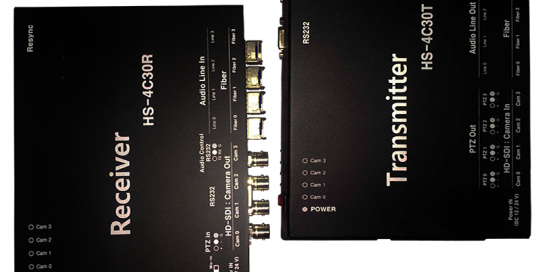

HD-SDI / HDMI /DVI HS-4C30TR Syscom Korea, a leader in the market of pixel to pixel cabling solution, created Fiber Optics. Syscom Korea cabling solution will be a perfect choice for overcoming the problems of facility access, capital cost, distance, EMI, ESD and bandwidth. Syscom Korea’s Optical HD-SDI Cable can send signals up to 20km without electrical or magnetic noises that plague performance of high speed HD-SDI. Syscom Korea’s Optical HD-SDI solution consists of plug and play modules with HS-4C30T connecting to camera and HS-4C30R connecting to DVR side. The HS-4C30T receives, converts and sends out video data to fiber from the camera while HS-4C30R receives the optical signals, converts them back into video data and sends to DVR. Data Sheet Typical Set Up Diagram Technical  Specification Camera SD-SDI (SMPTE 259M / 344M) HD−SDI (SMPTE [...]

HD-SDI / HDMI /DVI HS-1C60TR Syscom Korea, a leader in the market of pixel to pixel cabling solution,  created Fiber Optics. Syscom Korea cabling solution will be a perfect choice for overcoming the problems of facility access, capital cost, distance, EMI, ESD and bandwidth. Syscom Korea’s Optical HD-SDI Cable can send signals up to 20km without electrical or magnetic noises that plague performance of high speed HD-SDI.   Syscom Ko rea’s Optical HD-SDI solution consists of plug and play modules with HS-1C60T connecting to camera and HS-1C60R connecting to DVR side. The HS-1C60T receives, converts and sends out video data to fiber from the camera while HS-1C60R receives the optical signals, converts them back into video data and sends to DVR. Data Sheet Typical Set Up Diagram Technical  Specification Camera SD-SDI (SMPTE 259M / 344M) [...]

Camera link Repeater RCL-200 Camera Link is a high-speed camera/frame grabber interface designed for high performance vision  applications. Standard Camera Links delivers signals for 10 meters or less, creating inflexible situations for many applications where longer distance image transmission is required between the camera and the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance (Area and Line Scan) Support Base, Medium and Full Configuration Support Pixel clock from 20 ~ 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container Management Railroad Measurement / inspection Cameras placed in harsh environment - Nuclear plant, Chemical plant, Factory Bridge inspection Military & Defencse [...]

Fiber Optic Repeater FCL-30TR Syscom Korea’s Optical Camera Link Cable can send signals up to 20km without electrical or magnetic noises that plague performance of high speed Camera Link. Syscom Korea’s Optical Camera Link solution consists of plug and play modules with FCL-300LT connecting to camera and FCL-300LR connecting to the frame grabber( or PC) side. The FCL-300LT receives, converts and sends out video data to fiber from the camera while FCL-300LR receives the optical signals, converts them back into video data and sends to the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance ( Area and Line Scan) Support Full Configuration (CC1 ~ 4, RS232, Max 10 Ports, LVAL, DVAL, FVAL) Support Pixel clock from 20 - 85MHz Auto detect and Generate Pixel clock Zero loss and transparent [...]

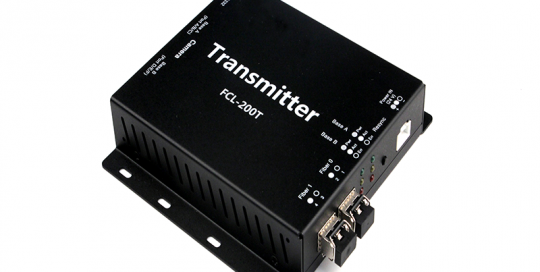

Camera Link Optical Extender FCL-200T/FCL-200R Syscom Korea’s Optical Camera Link Cable can send signals up to 20km without electrical or magnetic noises that plague performance of high speed Camera Link. Syscom Korea’s Optical Camera Link solution consists of plug and play modules with FCL-200LT connecting to camera and FCL-200LR connecting to the frame grabber( or PC) side. The FCL-200LT receives, converts and sends out video data to fiber from the camera while FCL-200LR receives the optical signals, converts  hem back into video data and sends to the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance ( Area and Line Scan) Support Dual-Base / Medium Configuration (CC1 ~ 4, RS232, 6 Ports, LVAL, DVAL, FVAL) Support Pixel clock from 20 - 85MHz Auto detect and Generate Pixel clock Zero loss [...]

Camera Link Optical Extender FCL-200T/FCL-200R Syscom Korea’s Optical Camera Link Cable can send signals up to 20km without electrical or magnetic noises that plague performance of high speed Camera Link. Syscom Korea’s Optical Camera Link solution consists of plug and play modules with FCL-200LT connecting to camera and FCL-200LR connecting to the frame grabber( or PC) side. The FCL-200LT receives, converts and sends out video data to fiber from the camera while FCL-200LR receives the optical signals, converts  hem back into video data and sends to the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance ( Area and Line Scan) Support Dual-Base / Medium Configuration (CC1 ~ 4, RS232, 6 Ports, LVAL, DVAL, FVAL) Support Pixel clock from 20 - 85MHz Auto detect and Generate Pixel clock Zero loss [...]

SCL-300T3A 설명글 준비중입니다.

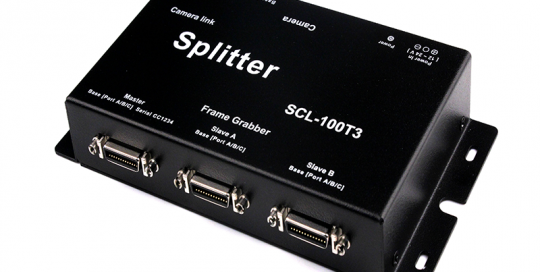

Camera link Splitter SCL-100T3 The SCL-100T3 Camera Link Splitter interfaces one Camera Link camera to three frame grabbers using standard Camera Link cables. This arrangement enables the addition of a second frame grabber for functions such as camera setup, secondary/parallel processing, monitoring, and recording. One frame grabber acts as master and provides control and communications to the camera. The second frame grabber receives camera video data only. grabber acts as master and provides control and communications to the camera. The second frame grabber receives camera video data only. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance (Area and Line Scan) Support Base, Medium and Full Configuration Support Pixel clock from 20 ~ 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect [...]

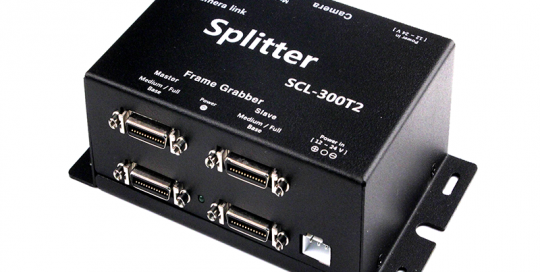

Camera link Splitter SCL-300T2 The SCL-300T2 Camera Link Splitter interfaces one Camera Link camera to two frame grabbers using standard Camera Link cables. This arrangement enables the addition of a second frame grabber for functions such as camera setup, secondary/parallel processing, monitoring, and  recording. One frame grabber acts as master and provides control and communications to the camera. The second frame grabber receives camera video data only. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance (Area and Line Scan) Support Base, Medium and Full Configuration Support Pixel clock from 20 ~ 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container Management Railroad [...]

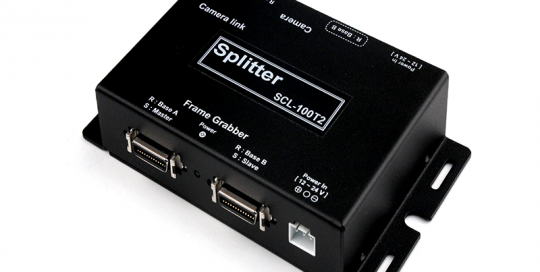

Camera link Splitter SCL-100T2 The SCL-100T2 Camera Link Splitter interfaces one Camera Link camera to two frame grabbers using standard Camera Link cables. This arrangement enables the addition of a second frame grabber for functions such as camera setup, secondary/parallel processing, monitoring, and recording. One frame grabber acts as master and provides control and communications to the camera. The second frame grabber receives camera video data only. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance (Area and Line Scan) Support Base, Medium and Full Configuration Support Pixel clock from 20 ~ 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container Management Railroad [...]

Camera link Repeater RCL-300 Camera Link is a high-speed camera/frame grabber interface designed for high performance vision  applications. Standard Camera Links delivers signals to 3 meters or less, occurring inflexible situations in many applications which requires longer distance image transmission between the camera and the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance (Area and Line Scan) Support Base, Medium and Full Configuration Support Pixel clock from 20 ~ 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container Management Railroad Measurement / inspection Cameras placed in harsh environment - Nuclear plant, Chemical plant, Factory Bridge inspection Military & Defencse Applications [...]

Camera link Repeater RCL-200P2 Camera Link is a high-speed camera/frame grabber interface designed for high performance vision  applications. Standard Camera Links delivers signals for 10 meters or less, creating inflexible situations for many applications where longer distance image transmission is required between the camera and the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance ( Area and Line Scan) Support Dual Base / Medium Configuration  Support Pixel clock from 20 - 85MHz  Zero loss and transparent transport Locking DC power connector  Attaches to the compact MDR26 connect 2 Power out 12V support Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container management Realroad measurement/inspection - Nuclear plant, Chemical plant, Factory  Bridge inspection  Military & Defense Applications [...]

Camera link Repeater RCL-200s Camera Link is a high-speed camera/frame grabber interface designed for high performance vision applications. Standard Camera Links delivers signals for 10 meters or less, creating inflexible situations for many applications where longer distance image transmission is required between the camera and the frame grabber. Data Sheet Typical Set Up Diagram Technical  Specification All of Camera-Link Interface Compliance ( Area and Line Scan) Support Dual Base / Medium Configuration Support Pixel clock from 20 - 85MHz Zero loss and transparent transport Locking DC power connector Attaches to the compact MDR26 connect PoCL Bypass Machine Vision Applications Product inspection - PCB, LCD, Wafer Bar code reading and sorting Medical Imaging Port/Harbor cargo container management Railroad measurement/inspection Cameras placed in harsh environment - Nuclear plant, Chemical plant, Factory Bridge inspection Military & [...]
